| 主要技术参数： |
|
|

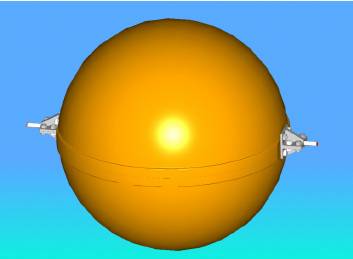

航空标志球（航空警示球）直径 |
ф=600mm |
|
球体颜色 |

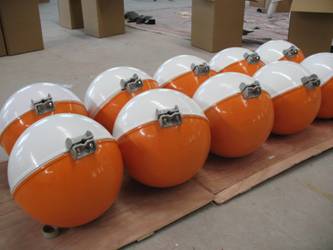

可以制作各种色彩艳丽的外观全白色、全橙色、全红色、橙白双色、橙红双色 |
|
球体材料 |
为工程增强塑料航空警示球与高压线电缆的线夹为铸铝件，紧固件采用不锈钢 |
|
球重量 |
15kg | |
| |
|
产品结构
1、标志球（航空警示球）安装在架空塔的防雷地线的钢缆上，每个标志球的间距，不能超出30米，等间设置。
2、标志球（航空警示球）有白、橙两种颜色，应相间设置。
3、涉及多条电线、电缆等场合，标志球（航空警示球）应设在不低于所标志的最高的架空线高度处。 |
| 此产品主要销往东南亚及欧美国家： |
|
|

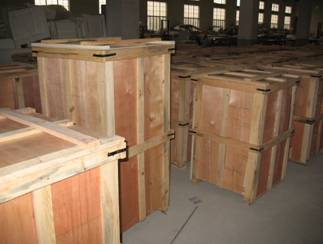

| 出口木箱包装： |
|
|
| |
|
航空警示球安装说明书（英文） |
|
Allerting Ball Installation Guide |
|
|
|
|
| Installing Procedure |
| 1.At the mount point on the alerting ball, wrap cable protecting bars round cables for 1000-1200mm long, with two ends of protecting bars extending 200-300mm beyond the surface of the ball, as shown in Figure 1. |
|
|
|
Figure 1 |
|
上半球 upper hemisphere
电缆线cables
线夹cable clamp
不锈钢螺栓stainless steel bolt
护线条cable protecting bars
下半球lower hemisphere |
| 2.Fix the plastic wires which are mounted on lower hemisphere of the ball onto the cables and twist them, as shown in Figure 2. |
|
|
|
Figure 2 |
|
下半球 lower hemisphere
塑料线 plastic wire
线夹cable clamp |
| 3.Combine the lower hemisphere with the upper hemisphere according to module codes. Turn the hemisphere during the assembly and make sure two hemispheres are joined into position . |
|
|
| 钢码模 module code |
| 4.Insert stainless steel bolts(M12*35) and then put flat washers and spring washers around each bolt. Tighten each nut at last, as shown in Figure 4. |
|
|
